Our Product & Services are
Factory Water Cooling System
- FRP Industrial Exhaust Fans | Italian Galvaznied Industrial Exhaust Fans | Evaporate Cooling Pads & Frames

Factory Ventilation System
- FRP Industrial Exhaust Fans | Italian Galvaznied Industrial Exhaust Fans

Evaporate Air Cooling System
- Evaporate Air-Coolers | Portable Air-Coolers | Professional  Cooling/Air-Con Ducting System and more

Natural Prismatic Skylight System
- 100% Prismatic Natural Skylights with 100% from USA......Nothing is better than "OFF"

LED Post Light [Powered by Solar]
- We provide the service for the import and export service in our lndonesia territory.

General Trading (Import and Export) in Indonesia
- We provide the service for the import and export service in our lndonesia territory.

PRODUCT INFORMATION:



We, Winspeed provide the quality materials with state-of-art manufacturing technique to produce the ventilation product, customers are always welcome for any test and proofing our product at any time.

WINSPEED®

GALVANIZED INDUSTRIAL EXHAUST FANS



  • 100% Galvanized Steel Structure with 100% Aluminum Fan's Blades

  • Voltages: 3 Phase 380V

  • Power    : 1.1KW

  • Exhaust Capacity: 44,500 M3/Hour

  • Noise : 65 dB    /  Weight: 75 Kg

  • Dimension(mm) :

    • 1380 x 1380 x 400mm (54" / Model: WS-54x)

    • 1220 x 1220 x 400mm (48" / Model: WS-48x)

    • 1060 x 1060 x 400mm (42" / Model: WS-42x)

  • Fan Belt Accelerate (Standard Belt A85-WS54)

  • Motor made in Taiwan ; Assembling in China

WINSPEED®

FRP INDUSTRIAL EXHAUST FANS

(Fiber-Reinforced Plastic/Polymer)



  • FRP Casing with steel support and 100% Alloy Fan's Blades

  • Voltages: 3Phase 380V 50Hz  /  3Phase 220V 60Hz (option)

  • Power    : 1.1KW

  • Exhaust Capacity: 47,000 M3/Hour (03 Alloy)  | 45,000M3/Hour (07 Chromed)

  • Noise : 75-78 dB    /  Weight: 80 Kg

  • Dimension(mm) : 1460 x 1460 x 930mm

  • Support : Galvanized Round Steel with "X" supports

  • Front Cover: Shutter      ;    Back Cover: Twin Door or Round Net

  • Available in 03 Blade Alloy / 07 Blade Chromed Steel

  • Motor made in Taiwan ; Assembling in China

WINSPEED®

CELdek EVAPORATE COOLING PAD



CELdek® is made from a special high cellulose material, which is impregnated to resist degradation.



The CELdek® unique cross-fluted design of the pads induces highly turbulent mixing of air and water for optimum heat and moisture transfer. CELdek® further enhances this design using unequal angles in the slope of the corrugations. The 45 degree and 15 degree corrugations are offset to continually direct the water to the air entry side of the pad.

WINSPEED®

EVAPORATED AIR-COOLER UNITS

(Fiber-Reinforced Plastic/Polymer)



  • Air Cooler Casing with Heat-Resistance PE/PP/ABS materials

  • Voltages/Power/Exhaust Capacity:

    • 3Phase 380V 50Hz  / 1.1Kw (01 Speed)

    • 1Phase 220V / 1.1kw; 0.75kw ; 0.55kw  (03 Speed)

  • Effective Area (SqM) : 120-150

  • Noise : 70 dB    /  Weight: 58 Kg

  • Fan Type: Axial

  • Dimension(mm) : 1070 x 1070 x 1090 mm

  • Water Usage： 20-30 Liters/Hour

  • Available in Single and Three Speed

  • Motor made in Taiwan ; Assembling in China

WINSPEED®

PORTABLE AIR-COOLERS UNIT



  • WINSPEED MINI PORTABLE AIR-COOLERS WS-06N

  • Voltages: 1 Phase 220V

  • Power    : 1.1KW

  • Exhaust Capacity: 44,500 M3/Hour

  • Noise : 65 dB    /  Weight: 75 Kg

  • Dimension(mm) :

    • 1380 x 1380 x 400mm (54" / Model: WS-54x)

    • 1220 x 1220 x 400mm (48" / Model: WS-48x)

    • 1060 x 1060 x 400mm (42" / Model: WS-42x)

  • Fan Belt Accelerate (Standard Belt A85-WS54)

  • Motor made in Taiwan ; Assembling in China

WINSPEED®

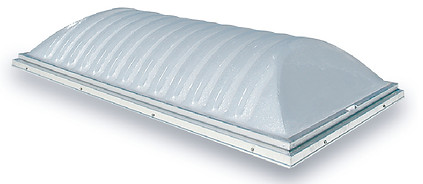

SUNOPTICS PRISMATIC SKYLIGHT



  • Skylights shall be Sunoptics model 800MD ( curb mounted ) as manufactured by Sunoptics Skylights, 6201 27th Street, Sacramento Ca. 95822 916/395-4700

  • Skylights shall be glazed ready for installation.

  • Skylight frames shall be fabricated from 6063 T6 aluminum, finish to be natural mill. Frames shall have integral condensation and weepage gutters which drain interior moisture to the outside. Corners shall be mitered and welded. The acrylic glazing shall be separated from the skylight frame with a Silicon Seal.

  • Skylights shall be Double glazed using SR40 50% or 100%, Impact Modified Clear Prismatic over SR25 White Prismatic lens, CC2 Rated, glazed in a Signature Series Dome configuration.

  • Standard Size units up to 5080 are tested and certified to AAMA/WDMA/CSA101/I.S.2/A440-05 to comply with section 2405.5 of the International Building Code.

  • (Optional)  OSHA compliant Safety Security Screen fabricated from a wire mesh galvanized cold rolled steel. The safety screen shall be tested to withstand the impact of a 240 pound weight, one foot in diameter, dropped from a height of 3 feet and support a concentrated load of 600 pounds after the impact. Install using Staples or Clips provided at 12” O.C. between cross members.​

Frame Model 800MD

Section 08620

WINSPEED®

LED Post Light [Powered by Solar]

  • Led light Capacity: 50W, Light Effect: 95 lm/w, Color 5000K. High grade protection process, using with import chip-set with weather-proof.

  • 100Ah Battery Maintenance-free battery 2sets, a single block of capacity > 100Ah, Water-proof rating: IP65

  • 140W Solar Panel Composed of a single crystal solar cells, ultra-translucent glass backplane, power not less than 140W, high conversion efficiency

  • LAMP POST 8M （Top）Lever 8 meters high, wall thickness of not less than 3.5mm
